Laser Cut Drill Bit Large Storage Template - Acrylic - 1/4" -Imperial version

This template is ~1/4" thick Clear Acrylic

- Note, Shop made wood box examples not included - Imperial Version See our other ads for Metric

This is a larger size of the original. Overall size is 5 3/8" x 11 1/4". Holes go from 3/64" to 1" Pictures showing the template in use are with one of our smaller designed boxes and are for usage example only.

The main picture is the template for this listing.

This clear acrylic template can be used to create a shop made storage system for frequently used drill bits.

I have tried using foam and other means to prevent having bits I use almost daily from lying around. Not only does this wear out fast but the more I used the bits the harder it became to see the size stamped on them. (That I am getting older, I am sure has nothing to do with it!)

The template is 5 3/8" x 11 1/4" tall. Due to size this design does not have the ruler or other holes. Includes just the holes for the bits.

You can see the box I built in the pictures. It is just a simple one with a dado to accept the bottom and a rabbit for the template to sit in. ( I included a photo one of the sides so you can see what I mean)

I put a piece of felt in the bottom of mine but it is optional.

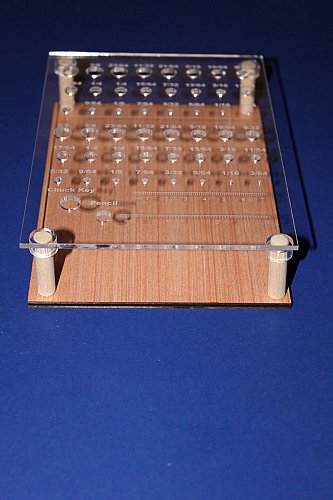

I realize not everyone would want to go to this much trouble for a shop storage box, so I include with the template 4 acrylic donuts that you can hot glue to the bottom of the template and use a piece of scrap and 3/8" dowels to create the bottom. I have included a picture of what it would look like. Also included are 4 (this larger version needs extra) figure eight acrylic pieces to prevent template from pulling out of a shop made box. See pictures for an example.

The price includes the acrylic template, 4 figure 8's and the donuts only.
